ACAF Systems Automatic Compressed Air Form
AI Overview
There is no single fixed price for the ACAF Systems Automatic Compressed Air Foam (BOSS 60) skid, as the final cost is dependent on several factors. Publicly available pricing for comparable 60-gallon CAFS skid systems from other manufacturers ranges from approximately $10,000 to $60,000 or more.

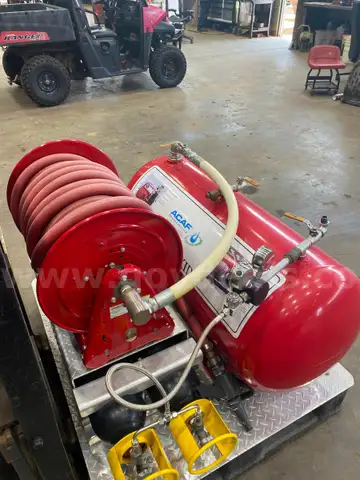

The ACAF Systems BOSS 60 skid is a self-contained, 60-gallon compressed air foam (CAF) firefighting unit designed for industrial and special hazard environments. It is manufactured by ACAF Systems, Inc.. The skid is engineered to deliver a highly effective, environmentally friendly foam for suppressing both Class A (ordinary combustibles) and Class B (flammable liquids) fires.
Features and specifications
Performance:
Finished foam capacity: A single 60-gallon unit can produce up to 720 gallons of finished foam.
Discharge duration: A continuous discharge can last for 5 to 6 minutes, according to ACAF Systems.
Discharge range: The system can project foam up to 60 feet in zero-wind conditions, allowing operators to maintain a safe distance.
Fire suppression technology:
The unit uses compressed air or nitrogen to inject gas directly into a solution of water and foam concentrate.
The result is a homogenous, small-bubble foam blanket that separates the burning fuel from oxygen and prevents re-flash.
CAF technology is known to be more effective and use less water than traditional foam systems.
Construction:
The skid is constructed with a high-density polyethylene base for durability.
An optional corrosion-resistant stainless-steel tank and stainless-steel fittings are available for harsh environments, such as offshore applications.
It features premium stainless-steel gauges and zinc-based paint to inhibit corrosion.
Portability:
The skid-mounted design allows the unit to be easily transported by vehicles or forklifts and deployed wherever needed.
Wheeled versions are also available.
Environmental impact:
ACAF Systems are designed to be environmentally safe and "green compliant," using fluorine-free foams.
The system uses approximately 75% less water than traditional firefighting technologies.
Certifications:
ACAF products are FM (Factory Mutual) Approved.
Pressure components meet ASME (American Society of Mechanical Engineers) standards.
Applications
The BOSS 60 skid is suitable for a wide range of industrial and commercial settings, including:
Oil and gas facilities
Mining operations
Aircraft hangars
Pumping stations and refineries
Industrial warehouses
Heavy equipment and vehicle protection
