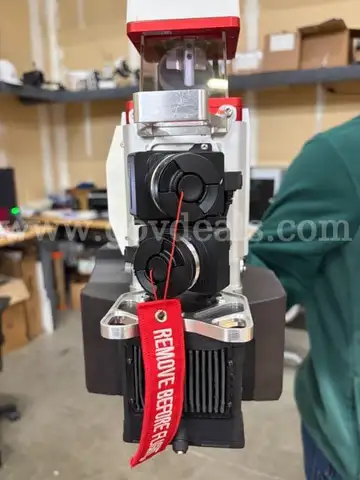

True View 640 RIEGL miniVUX-3UAV LiDAR Laser Scanner and Mapping Camera (No Reserve)

The True View 640 is a compact, survey-grade 3D Imaging Sensor (“3DIS”) designed for small Unmanned Aerial Systems (sUAS or drone). It comprises a survey-grade RIEGL laser scanner with dual photogrammetric cameras that have been carefully configured to provide a fused LIDAR/imagery field of view (FOV).

The True View 640 is GeoCue’s second generation of integrated LIDAR/camera fusion platform designed from the ground up to generate high accuracy 3D colorized LIDAR point clouds using the RIEGL miniVUX-3UAV. Featuring dual GeoCue Mapping Cameras, a Riegl miniVUX-3UAV laser scanner and Applanix Position and Orientation System (POS), the result is a true 3D high accuracy imaging sensor (3DIS).

The RIEGL miniVUX-3UAV laser scanner provides range of up to 120m with up to five returns per outgoing pulse. The miniVUX-3 is RIEGL's update of the miniVUX-2, with selectable pulse Repetition Rate to 200,000 pulses per second.


*True View EVO Software Not Included*

True View EVO is the software used to post-process your raw flight data. EVO will generate a 3D LIDAR point cloud in LAS format, colorize the point cloud, and geotag the images collected. It is based on GeoCue’s LIDAR point cloud exploitation software, LP360, and comes with all the same tools as LP360 Advanced. Tools such as accuracy assessment, automatic and manual ground classification, and contour/ surface exporting.

True View EVO gives mappers and surveyors the ability to deliver high quality analytic data with exacting accuracies. True View EVO lets users ingest data from a True View sensor and process to end products without the need to employ other software applications. This is a huge reduction in workflow complexity and a big-time saver.

*WILL SHIP WITH BUYER PROVIDED SHIPPING LABEL*
