2001 Sutphen SA75 75 ft Aerial Ladder – Detroit Series 60 / Allison 3000 / Hale QMAX150 23L

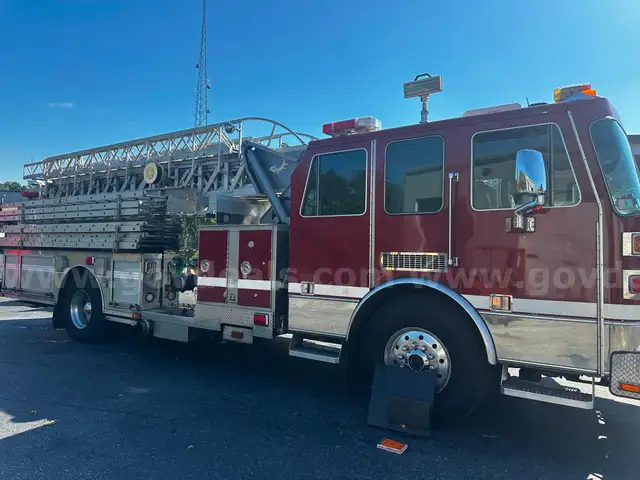

This 2001 Sutphen SA75 is a mid mount 75 ft aerial ladder built on Sutphen’s heavy duty, four door custom chassis. It is powered by a Detroit Series 60 12.7 L diesel and an Allison 3000 EVS automatic transmission with PTO provision.
Highlights
• Mileage: 115,490
• Engine Hours: 13,509
• Chassis/Powertrain: Custom Sutphen chassis with full tilt cab for easy engine access. Detroit Series 60 12.7 L diesel engine. Allison 3000 EVS automatic transmission.
• Pump and water system: Hale QMAX150 23L single stage midship pump rated at 1,500 GPM. The truck carries a poly water tank of approximately 500 gallons. Standard pump plumbing includes dual 6 inch suction inlets, multiple 2.5 inch discharges, dual cross lays, and tank to pump/ tank fill piping.
• Aerial device: 75 ft four section mid mount ladder with a 1,500 GPM rated monitor. The ladder carries a 1,000 lb tip load dry and a 750 lb wet rating and deploys quickly from the rear of the apparatus.
• Body and storage: Corrosion resistant #304 stainless steel body bolted to the chassis. Tall and deep compartments offer ample storage and can accommodate roughly 210 ft³ of equipment. Rear hose bed holds about 1,000 ft of 5 inch supply hose.
• Ground ladders (included): one 35′ extension ladder, one 24′ extension ladder, two 16′ roof ladders, one 14′ combination ladder and one 10′ attic ladder.
• Crew accommodations: Seating for six (expandable up to ten with alternate configurations) using Bostrom Secure All SCBA seats. Durawear interior and stainless steel door panels.
• Other features: Mid mount design lowers the center of gravity for stability and improved handling, and allows unobstructed intersection visibility. The four sided box boom ladder is built from 6061 T6 aluminum with Huck bolt construction for strength and durability. Quick setup allows the aerial to be put in service in under 30 seconds. The truck includes shore line connection, scene lighting and EMS/storage cabinet options.
Condition
It has received regular fleet maintenance. Sale is as is/where is, with no warranty expressed or implied. Permanently mounted equipment (pump, aerial, and monitors) is included; loose equipment such as hoses and hand tools is not included unless specified.
