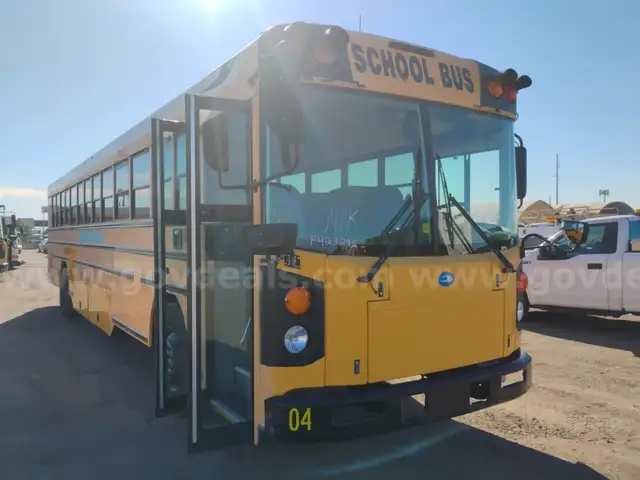

2012 Blue Bird All American/All Canadian School Bus

ASSET LOCATION: SIERRA AUCTION PHOENIX
Seller Type Other
**To Be Sold Pending Seller Confirmation**
Features: Air Brakes, Roof A/C, Swing Open Doors, Passenger Seats
84 Passenger Stated Capacity

41 Ft total length / 11 Ft total height

Has trouble engaging in Reverse

Horn stays on after pulling out key
Mileage 102005
Odometer Statement Box A - Actual Mileage
Title Status On File
Drive Status Starts/Runs With Jump
**As-Is/Where-Is: No Guarantee On Roadworthiness Or Drive Status**
Engine Cummins 6.7L L6 DIESEL
Fuel Diesel
Transmission Automatic
Drive Type 2x4
Body Type Bus
Color Yellow
VIN/SERIAL 1BABNBPAXCF284592

Manufacturer's Specifications:
2012 Blue Bird All American Rear Engine — D3 Platform
General
Model: Blue Bird All American RE (Rear Engine)

Chassis: D3 rear-engine transit chassis

Bus type: Type-D, transit-style

Passenger capacity: 72–84 passengers (typical)

Body width: 96 in (8 ft)

Interior width: ~90–91 in

Interior headroom: ~77 in

Dimensions
(May vary by wheelbase/body length ordered)

Wheelbase options: 219" / 238" / 259"

Overall length range: ~34 ft to 40 ft

GVWR: 33,000–36,200 lb

GAWR (front): 12,000–13,500 lb

GAWR (rear): 20,000–23,000 lb

Engine (Rear-Mounted)
Common engines used on the D3 RE in 2012:

Cummins ISC 8.3L (most common on D3 RE)

Horsepower: 240–280 hp

Torque: ~660–800 lb-ft

Cummins ISB 6.7L (less common on RE D3)

Horsepower: 200–260 hp

Position: Rear-mounted, left or center service door depending on fleet spec.

Transmission
Allison automatic transmission, typically:

Allison 2500 (lighter D3 builds)

Allison 3000 series (standard for most RE D3 configurations)

Push-button electronic shift selector

Fuel System
Fuel type: Diesel

Fuel tank capacity: 100 gallons typical

Suspension
Front: parabolic leaf-spring suspension

Rear: full air-ride suspension (standard on RE D3)

Heavy-duty shock absorbers front and rear

Brakes
Full air brakes (standard on D3)

ABS: 4-channel system

Parking brake: air spring, dash-mounted valve

Tires / Wheels
Tire size: 11R22.5 radials

Wheel format: dual rear wheels

Wheel cut: ~50–55° (improved turning radius vs earlier models)

Doors
Front entrance door:

Width: ~32 in

Height: ~79 in

Type: outward-opening, electric or air-powered

Side emergency exit door: mid or rear-mid position

No rear door due to engine compartment

Interior & Seating
Seating options: vinyl or cloth; high-back or low-back

Optional: seat belts (lap or 3-point depending on order)

Aisle width: varies by seat configuration

Emergency Exits
Emergency exit windows: 4–8, depending on bus length

Roof hatches: 1 or 2

Side emergency exit door: standard on RE

Rear engine compartment service doors (not used for passenger egress)

Electrical / Lighting
12-volt multiplex wiring system

Alternator capacity: typically 160–200 amps

Exterior lighting: LED or incandescent depending on customer spec

Optional: backup camera, PA system, student-check system
