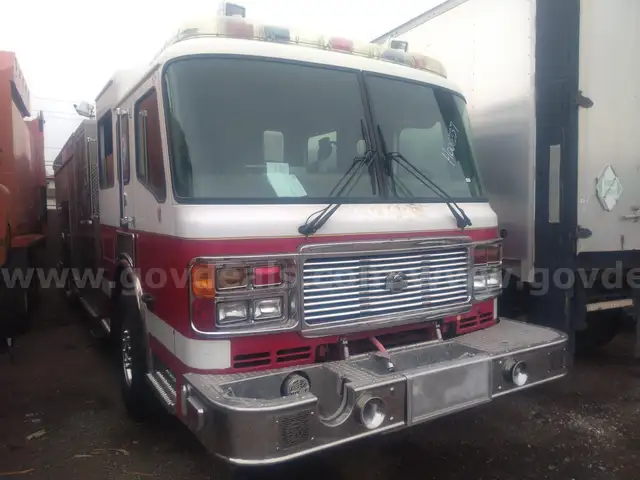

2005 American LeFrance Eagle Mid Engine Pumper

Seller Type Municipal/Government Fleet
**To Be Sold Pending Seller Confirmation**
Mileage Unknown
Odometer Statement Box C - True Mileage Unknown
Title Status On File
Drive Status NonRunner
**As-Is/Where-Is: No Guarantee On Roadworthiness Or Drive Status**
Engine Detrot Diesel Series 60 L6, 12.7L (775 CID)
Fuel Diesel
Transmission Automatic
Drive Type FWD
Body Type Pumper
Color Red
VIN/SERIAL 4Z3AAGCG55RU32724

Manufacturer's Specifications:

Chassis & Cab
Model: Eagle custom fire apparatus chassis

Cab Style: Tilt-cab (often four-door, six-person crew configuration)

Cab Construction: All-aluminum (typical for Eagle models)

Wheelbase: ~ 200″-220″ (varied by specification)

Overall Length: Approx. 30-35 ft depending on body and tank size

Overall Height: Typically ~9-10 ft above ground

Seating Capacity: Up to 6 firefighters (depending on SCBA seat configuration)

GVWR (Gross Vehicle Weight Rating): ~45,000 lbs (for many Eagle pumpers)

Example: a 2006 Eagle with Series 60 had GVWR ~45,000 lbs.

Engine & Drivetrain
Engine: Detroit Diesel Series 60 (mid-2000s usage on the Eagle platform)

Typical horsepower: ~500-515 hp (examples: 500 hp in 2004 model, 515 hp in 2006 model)

Transmission: Allison automatic (e.g., Allison 4000/EVS series)

Engine Brake: Included (for heavy duty fire apparatus use)

Pump & Water System
Pump Type: Side-mount centrifugal pump (typical)

Rated Pump Capacity: ~1,250-2,000 gpm (varied by body build)

Example: A 2004 Eagle Series 60 had a 2,000 gpm side-mount pump.

Water Tank Capacity: Many units ~500-1,000 gallons, depending on department specification

Foam System: Optional Class A/B foam system installed in many units

Body & Compartments
Body Material: Aluminum or stainless steel (varies)

Compartment Doors: Options of roll-up or hinged doors

Hose Bed Capacity: Hose storage typically configured for large-diameter hose (LDH) and smaller advance lines

Side-mount pump panel common on this chassis

Braking, Suspension & Electrical
Brakes: Full air brakes with ABS (industry standard for heavy fire apparatus)

Suspension: Heavy duty leaf springs or air ride (depending on spec)

Electrical: 12V system, heavy-duty alternator, scene lighting packages

Notes & Observations
The decision to install the Series 60 engine on the Eagle platform was announced by American LaFrance in 2004.

Because these apparatus are custom-built, exact dimensions, capacities and features vary significantly department-to-department.

The spec sheet above is representative of a typical configuration for the Eagle/Series 60 combination, not a guaranteed single unit specification.



**Disclaimer: The manufacturer's specifications provided are for reference only, and we disclaim any liability for inaccuracies or discrepancies. Specifications may vary by model or trim, and stock photos are used for illustrative purposes only and may not accurately represent the actual product. Please refer to the actual product for precise details.**
