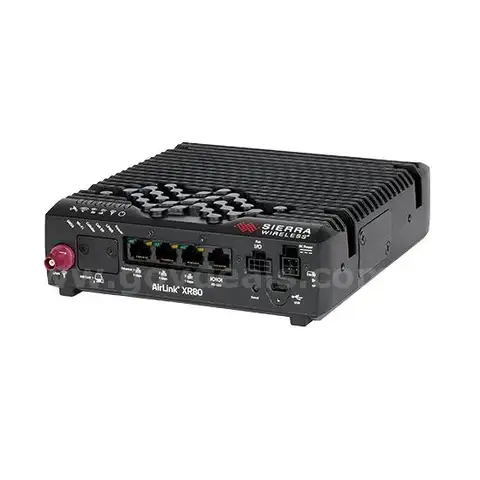

AirLink® XR80 5G x 50
High Performance Multi-Network 5G /6 Router

QUANTITY in this auction 50 AirLink XR80 Mobile Routers

XR80s are open box (pre-owned, set up to be used but Never actually used, new condition!). The XR80s are factory reset and in excellent cosmetic and working condition.

We will Ship, but must make arrangements and pay for shipping. Pick up is available as well.

Value - These are the MSRP listed at different places; Some places price these higher, but found them at this rate and two sites
Value for ONE new routers (1,799+ Each -Source: CDW and Westward Sales and SHI international)

We have 200 routers, so feel free to inquire about bulk purchases.

The supercharged AirLink® XR80 5G LTE router is optimized for fixed and mobile applications. The available dual-5G cellular radio and 5×4 MU-MIMO Wi-Fi 6 deliver the flexibility expected from a high-performance vehicle and industrial 5G router with customized configurations. The AirLink XR80 supports complete device-to-cloud security, reduces total cost of ownership with ALMS Out-of-Band management, and, with its cartridge-based design, enables long-term expandability and upgradability for critical mobile and industrial deployments.

Single or Dual 5-6G sim

Single: 5G: 3X Ethernet (2x1 Gbps + 1x5 Gbps)
Dual 5G: 4x Ethernet (3x1 Gbps + 1x5 Gbps)

Use Case: Mobile and critical applications in public safety and field services fleets. Fixed wireless access, SCADA, Edge, and industrial IoT.

NDAA Compliant Product = well suited for government, defense and a range of projects subject to the NDAA.

AirLink® XR80 – Router Specifications

KEY FEATURES
Cellular Radios
5G/LTE Cat-20
LPWA for ALMS Out of Band Management

Ethernet
Single 5G: 3x RJ45 (2×1 Gbps + 1×5 Gbps)
Dual 5G: 4x RJ45 (3×1 Gbps + 1×5 Gbps)

Serial
Single/Dual RS-232 (DB9) with optional cables

GNSS
48 Channel GNSS with Dead Reckoning

CAN
CAN bus/OBD-II (J1979)/J1939)

I/O
5 GPIO

USB
USB 3.1 USB-C
Bluetooth
–
IP Rating
Sealed Aluminum Housing (IP64 Rated)

QoS = Application/Traffic Priority Queuing

WAN Monitors = Connection Failure Recovery

Services
AirLink Complete

Operating System
AirLink OS

Management System
ALMS

POWER
Input Voltage
7 to 36 VDC

Power Consumption
Peak: 54W (4.5A @12V)
Standby: 55mW (4.5mA@12V)

Power Modes
Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump
Ignition Sense with time delay shutdown

GNSS w Dead Reckoning
IP64 Rated
Airlink OS w AirLink Complete

DIMENSIONS
Size
Base: 220mm x 170mm x 53mm / 8.7 x 6.7 X 2.1 in
Base + XP: 220mm x 220mm x 53mm / 8.7 x 8.7 x 2.1 in

Weight
Base: 1.80 Kg / 3.97 lb
Base Wi-Fi: 2.00 Kg / 4.41 lb
Base + XP: 2.64 Kg / 5.82 lb
