Used / Untested / Sold As is / Some cosmetic damage

Dimensions – 6’ x 3’ x 8’ approx. 6,000lbs. Please be sure you can transport this item if you are the winning bidder.

The below description and specs are based on search results and may not be exact.

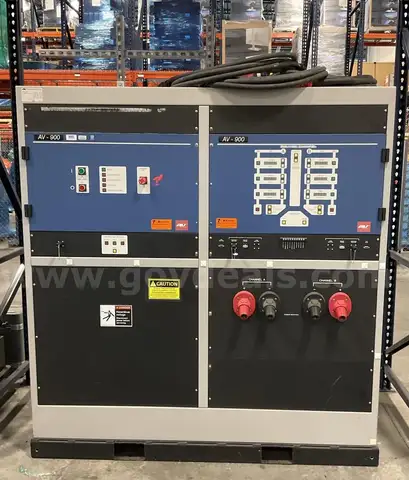

The AV-900 is a Heavy Duty Dual Channel Cycling Station designed for testing and emulating energy storage and drivetrain components of large electric and hybrid electric vehicles (HEVs), including buses, trucks, military vehicles, and locomotives.

Input Rating
• Voltage: 3 Phase, 480Vrms (also available in 380Vrms, 400Vrms, 440Vrms)
• Current: 335Arms at 480Vrms
• Frequency: 60Hz (50Hz optional)
• Isolation Transformer: Internal
• Power Factor: >99%
• Harmonic Distortion: <3% THD; IEEE 519 Compliant Operating Range
• Voltage (Vdc):
o +8 to +750 V
o +751 to +825 V
o +826 to +900 V
• Current (Adc):
o Independent Mode:
 -500 to +500 A (up to 750 V)
 -400 to +400 A (751–825 V)
 -300 to +300 A (826–900 V)
o Parallel Mode:
 -1000 to +1000 A (up to 750 V)
 -800 to +800 A (751–825 V)
 -600 to +600 A (826–900 V)
• Power (kW):
o Independent Mode: -250 to +250 kW
o Parallel Mode: -250 to +250 kW

Measurement Accuracy & Resolution
• Voltage:
o Accuracy: ±250 mV or ±0.15% of output voltage
o Resolution: 50 mV
• Current (Independent Channels):
o Accuracy: ±250 mA or ±0.25% of reading
o Resolution: 40 mA
• Current (Parallel Channels):
o Accuracy: ±350 mA or ±0.35% of reading
o Resolution: 80 mA

Environmental Conditions
• Operating Temperature: 0°C to 35°C (32°F to 95°F)
• Humidity: 5–90% non-condensing

Control Interfaces
• Manual
• Remote Operation System (ROS)
• DCOM Driver for LabVIEW
• C++ and Visual Basic
• CAN (Controller Area Network)

Additional Features
• Dual independently controlled channels
• Energy returned to grid at >92% efficiency
• Emergency stop button
• Load disconnect protection
• Real-time clock for accurate Ah and kWh measurement
• Bi-directional load capability
