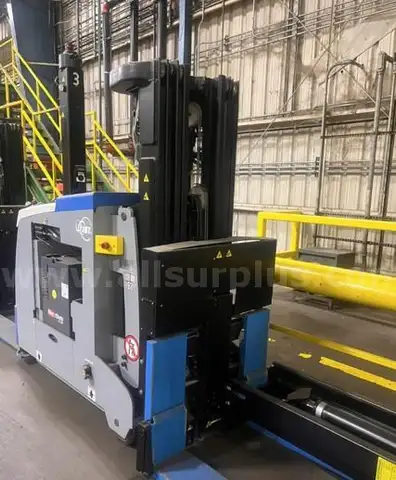

JBT Corp Dryer AGV 3-JBT SGV4000 Model CB-2500 Counterbalance Automatic Guided Vehicle (AGV)
These JBT SGV4000 Model CB-2500 counterbalance AGVs are built for efficient material transport of pallets, racks, and rolls, supporting both floor-level movement and integration with plant infrastructure such as conveyors, racking, and AS/RS systems. With a rear-mounted lift mast and compact footprint, these AGVs are optimized for tight operational spaces and multi-load configurations.

Included Equipment:
• JBT SGV4000 Model CB-2500 AGV
• Handheld Manual Control Pendant
• Spare Parts

Condition & History:
• In operation for around one and a half years
• Taken out of service due to environmental incompatibility (high-dust, high-moisture environment interfering with laser guidance)
• Well-maintained and stored indoors – good overall condition

Runtime Hours: 1,254 hours

Key Specifications:
• Lift Capacity: 1,650 lbs
• Lift Height: Up to 19.7 ft (auto height calibration)
• Mast Height: 108 in (9 ft)
• Vehicle Length (rear to fork tip): 137 in (11 ft 5 in)
• Vehicle Width: 40 in
• Vehicle Weight: ~2,028 lbs (with battery)
• Hydraulic tilt (+4° / -1°), side shift (±8 in)
• Slack chain protection
• Drive Wheel: 13.8 in diameter
• Rear Wheels: 11.8 in diameter × 3.9 in wide

System & Safety Features:
• SGV4000 laser-guided control system with pendant/manual override
• Bi-directional AC electric drive, speed up to 6.6 ft/sec
• 48VDC battery-powered, front-mounted charge shoe
• Full-color 10” touchscreen operator interface
• Fork tip sensors for load detection and fork pocket alignment
• Programmable laser safety bumpers (front, rear, and sides)
• Emergency stop buttons, horn, flashing warning lights
• Designed for block stacking, trailer loading, and multi-attachment compatibility

Removed from active service in 2024 due to incompatibility with a high-dust, high-moisture environment, which disrupted the laser-guided system, requiring frequent manual oversight. With less than a year and a half of use, these vehicles remain in good condition and are ideal for facilities with clean, indoor operations seeking reliable automation solutions.

NOTE: This lot is offered for sale to buyers located in the USA only. Any bid from entities outside of the USA will not be accepted. The sale of this lot is subject to additional terms and conditions of the seller, which can be found in the attached PDF. Removal by appointment only. Buyer is responsible for all handling, loading, packaging and shipping costs. If buyer is using 3rd party shipper they need to make sure they have the proper agent release forms or they will be turned away. Buyer must also follow any safety requirements while on site and provide Insurance Liability Form upon request.

Condition: Very Good Dimensions: L12.00 X W3.33 X H18.00 Feet Custom Asset Number: 143E105850003
