Traffix scorpion attenuator trailer

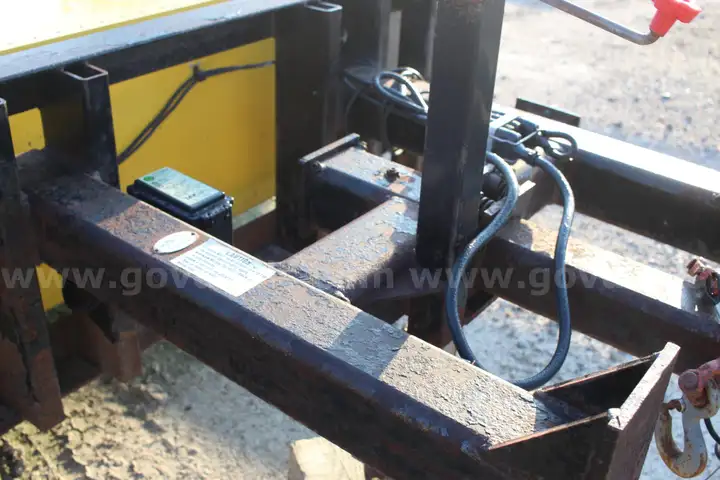

has some rust showing at the front legs of the unit as pictured overall in excellent shape
per the manufacturer

Unit is 17' 10" long
96" wide
36 " high
1875 lbs

The Scorpion Towable Attenuator (TA) is a mobile crash cushion designed with a tongue and axle/wheel that connects directly to the support vehicle's pintle hook from a lunette ring on the attenuator. The TA can be used on support vehicles with a minimum actual/curb weight of 10,000 lbs with no upper weight limit (infinite weight). The TA has overall dimensions of 17.8ft (5.4m) × 8ft (2.4m) × 4.3ft (1.3m) with ground clearance of 12" ± 1" (305mm ± 25mm). The TA consists of three main components: the attenuators tongue, front Strut, and rear Cartridge. The attenuators tongue is positioned nearest to the support vehicle, the Strut is bolted to the tongue and Cartridge. The Cartridge is the rear most component, furthest away from the support vehicle. The coupler acts as a standard single point connection under normal towing conditions. The attenuators tongue is designed with an integral Telescoping Anti-Rotation System (TARS) that is activated when the TA is impacted. The forward sliding action occurs during an impact, upon completion of the full telescoping action the outboard anti-rotation supports come into contact with support vehicle frame plate which in turn prevents angular rotation about the rear of the host vehicle. The Strut consists of four outboard convex aluminum tubes forming an aluminum structural weldment. The aluminum structural weldments bolt directly to the TARS tongue and the rear Cartridge. The structural assembly encompasses the aluminum crush Module D. The Cartridge consists of four outboard convex aluminum tubes forming an aluminum structural weldment. The aluminum structural weldments bolt directly the Struts steel angles and rear diaphragm. The TA uses a Cartridge Diaphragm with an axle/wheel attachment for towing the TA. The structural assembly encompasses the two-aluminum crush Module C's. Attached to the rear most end of the Cartridge is the single crush Module A.

THE IOWA DEPARTMENT OF TRANSPORTAION ACCEPTS NO LIABILITY FOR THE USE OF THESE TRAILERS,
THE UNIT SHOULD BE INSPECTED BY QUALIFIED PERSONEL TO ENSURE IT IS SAFE FOR USE
