This item is being presented to the auction by the Printing Services Department at Middle Tennessee State University. Questions
regarding this item should be directed to Kristy O'Neal. Kristy can be reached at kristy.oneal@mtsu.edu or 615-898-2734.

The item is a Prism P80 Paper Cutter. Below is the description I received from the department.

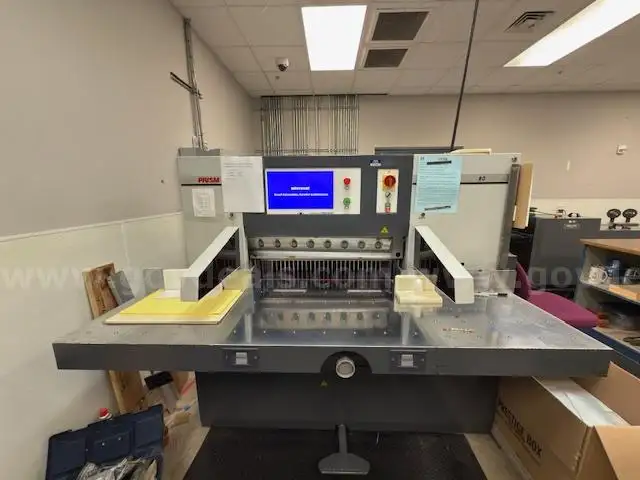

Prism P80 31.5” Programmable Paper Cutter – by Colter Peterson
Purchased and installed in 2020.
Key Features:
• Mechanical Knife, Single Arm Pull
• 15" LCD Touch Screen Display
• Variable hydraulic clamp pressure with electronic control
• Chrome main and side table surface with air
• Dual linear guides in rear
• Slot–less table

Top-of-the-line Features:
• Our Microcut® computer control unit with 15” color touch screen for automating backgauge movement is the most user-friendly system in the industry
• Prism industrial paper cutters are all equipped with CIP 3 / 4 JDF capability and are all networkable with no additional hardware or software required
• Cutting power is provided by a hydraulic clutch and time-tested worm gear design
• Cushion contact clamping eliminates pile disturbance
• High-speed steel knives (carbide optional) offer extended durability

Simplified Usage:
• Set and save job data for future use in the PRISM memory (500,000+ programs)
• Air table with built-in blower allows for easy material movement
• One-hand control of the backgauge for fast and precise settings
• Easily adjustable, electronic, programmable hydraulic clamping system
• The knife lifting unit allows for fast, simple, safe knife changes

Safe, Rugged Design:
• One-piece, chrome-plated, slotless cast iron table is sturdy and easy to maintain
• Oversize chromed, cast iron side tables with air are standard
• The knife bar is guided by dual gibs, engineered for rigidity and cutting accuracy
• Ball screw and dual liner guide guarantee precise backgauge positioning
• Our soft clamp foot treadle feature assures safe, easy use of the clamp
• Numerous other features such as knife bar overloads, infrared light barriers

Standard Equipment:
Here’s a glance at just some of what the PRISM guillotine cutter offers:
o Main power switch with lock
o 15” color LCD touch screen display for size input
o Overload switch for main and air table motor
o Overload protection with electronic monitoring
o Wear-resistant hydraulic clutch
o Variable hydraulic clamp pressure with electronic control
o Two-hand cut release, with time delay and non-repeat
o Safety latch (mechanical lock for knife carrier)
o Infra-red photo eyes with self check circuit
o Table light/optical cutting line indicator
o Manual backgauge positioning (one-hand control)
o Motorized backgauge, microcomputer controlled
o Digital 15” color touch screen display with rotary measuring system
o Non-volatile memory storage
o Measuring systems: inches/metric
o Automatic individual measurement positioning
o Cut counter
o Programming while cutting
o Low pressure air table with blower
o Chrome main and side table surface with air
o Dual linear guides in rear
o Slot-free main table
o
The Prism P80 Paper is being sold "as is where is" MTSU does guarantee operability or functionality of this equipment.

It is the winning bidder's responsibility to provide all resources necessary to remove the equipment from MTSU Property. The item is located in the Printing
Services Building 1758 Greenland Drive Murfreesboro, TN 37132.

It is highly recommended that a visual inspection of this item be conducted before submission of a bid. An inspection can be scheduled by contacting the
aforementioned Kristy O'Neal.

If an MTSU department or other state entity makes claim on this item, $12,000.00 FMV or Fair Market Value will be assessed and collected before transfer of
ownership can take place. This does not apply to the Genera
