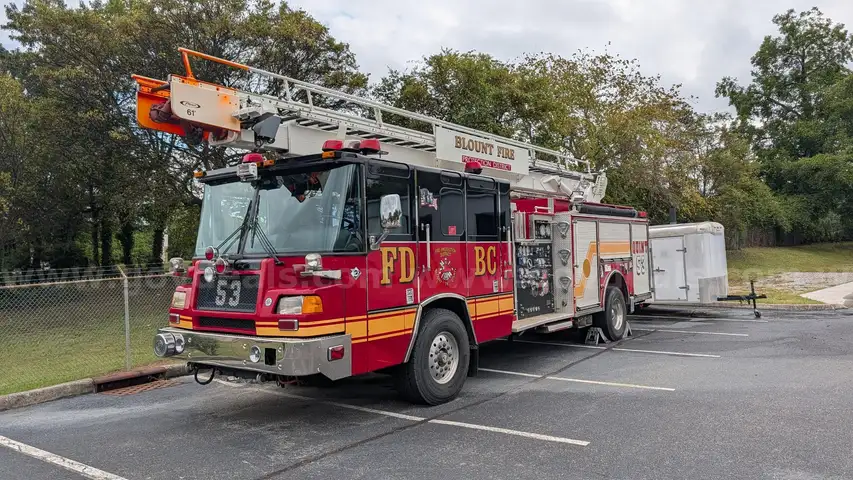

2001 Pierce Model Tilt Cab FIRE TRUCK, 12.7L L6 DIESEL. Quantum 61' Skyboom Aerial Fire Truck (Needs Ladder Repair)

Category: Transportation / Specialized Vehicles / Fire Trucks

Manufacturer/Model: 2001 Pierce Quantum, 61' Skyboom Aerial (Vertical), 51' (Horizontal)
Unit No.: Quint 53
Date of Manufacture: 09/01
Manufacturer Job #: 12714
Original Purchaser: MIDDLETOWN FIRE PROTECTION DIST

Vehicle Specifications:
Engine: 500 hp Detroit Series 60
Transmission: HD-4060PR Allison Transmission w/Retarder
Pump: 1500 gpm Waterous, single stage, Pump Model CSU
Booster Tank: 720 gallons water, 30 gal Class A Foam
Foam System: FoamPro 2000 Foam System, piped to all Crosslays and Discharge 1 & 3
Waterway: 4" to 3½" piping with a supply pressure of 135psi (115psi for smoothbore)
Generator: 10.0KW, does not need to be preheated
GVWR: 52,500 lbs.
Actual Vehicle Weight: 49,880 lbs.
Dimensions: Height - 12' 2½" with rails up; Width - 8' 8" (10' Mirror to Mirror); Length - 35' 1½"
Ladders Carried: 10' Folding, 14' Roof, 24' Extension, 35' Extension

Condition - IMPORTANT - READ CAREFULLY:
This vehicle is being phased out of service and is being sold AS IS, WHERE IS with no warranties expressed or implied. The aerial ladder failed its most recent inspection (10/16/24) and is NOT certified and should be taken from service until repaired.

Known Issues from 10/16/24 Inspection:
The extension cylinders leaked down 1.5 inches during the one hour drift (1/2 inch allowed). This is a Category 1 item (Unit Shall Be Taken From Service).
Bottom angle markings are missing on the angle indicator on the side of the ladder. This is a Category 3 item.
The rear slope / angle indicator is not working. This is a Category 3 item.
Rear streetside outrigger crushing hazard label is missing. This is a Category 3 item.
Fluid present at the PTO area. This is a Category 3 item.
No safety cable on the nozzle. This is a Category 4 item (For Information Purposes Only).
Odometer is not working. This is a Category 4 item.
Fluid / oil present at the front curbside drag-link. This is a Category 4 item.
Front streetside lower shock attachment bolt is loose. This is a Category 4 item.

Repair Note: Per an outside mechanic, the estimated cost to repair the ladder to operational status is approximately $10,000.

Additional Details:
Ladder can be controlled by the rear tailboard or by a remote control.
Aerial Tip Load (DRY / WET) from Vehicle Info Sheet:
-5 to 45 degrees: 500 lbs. (Dry/Wet)
45 to 85 degrees: 500 lbs. (Dry), 250 lbs. (Wet)
Waterous pump capacity is 1500 GPM at 150 PSIG.
GVWR is 52,500 LBS.
The vehicle's odometer is noted as not working on the inspection summary.

Inspection: Prospective bidders are highly encouraged to inspect the vehicle prior to bidding.

All sales are final. Sold as is, where is.

Equipment & Terms of Sale
Important Note on Included Equipment This auction is for the vehicle (apparatus) only. Some fire equipment pictured (such as, but not limited to, fire hose, nozzles, air packs (SCBA), hand tools, portable radios, mobile radios, and siren controllers) DOES NOT CONVEY with the sale and will be removed by the Blount County Fire Protection District prior to pickup.
